Android studio載入OpenCV 4.3 module
示範於新的Project中import OpenCV module，使用靜態初始化，把.so都包含在應用程序包，不使用異步初始化(程式包不含OpenCV apk，需下載安裝)。Android Studio版本 4.0、OpenCV 4.3。初學者可以先用OpenCV samples建立好的OpenCV環境，新增module進行練習，參考:Android studio新增OpenCV APP－初始化@KOEI的旅行 (本次會使用其中OpenCV初始化程式碼)。
前置工作：OpenCV SDK已經下載，sapmles也已經正確import，且正常執行，可參考:Android studio載入OpenCV範例@KOEI的旅行。
Android studio載入OpenCV 4.3 module步驟
步驟1:新增Project

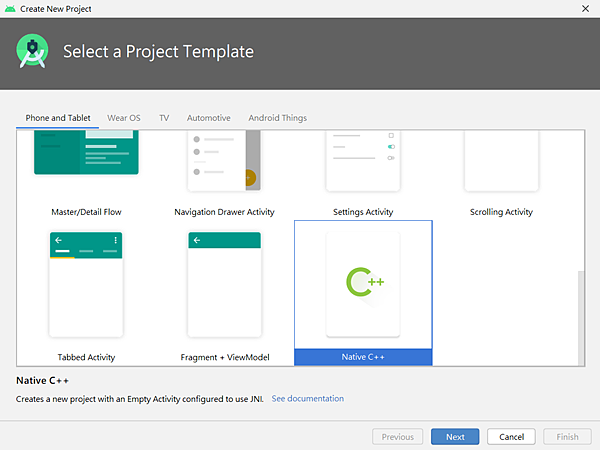

開啟Android Studio，點選File->New->New Project，Project Template選擇[Native C++] (如下圖)，後續有cmake參數可以編輯。

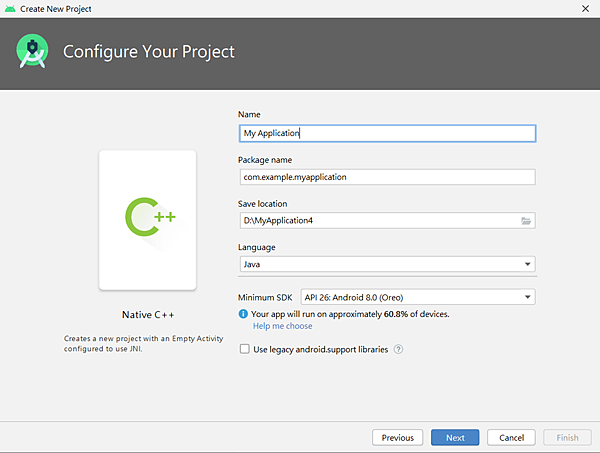

按[Next]。Minimum SDK可以依sample選API 26。

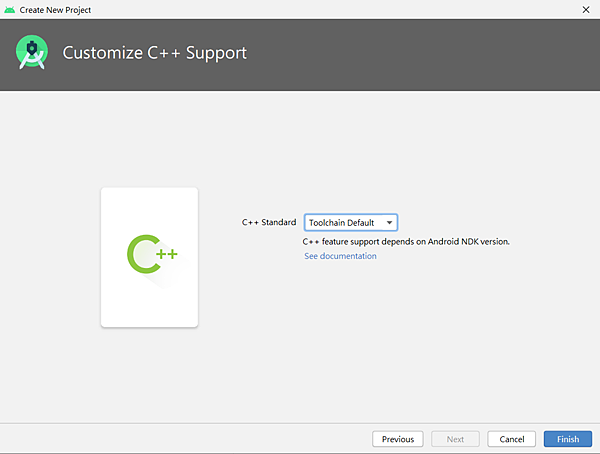

按[Next]。
按[Finish]即完成新增。
步驟2:Import OpenCV module
因為這版的Android Studio在import module時不能改名字，import OpenCV的目錄是\OpenCV-android-sdk\sdk\java，module名稱也會叫java，辨識度不佳，所以可以把上述目錄複製並改名，例如把java目錄內容複製到D:\OpenCV-android-sdk\java，並改名為opencv_java4_3，新的目錄變成D:\OpenCV-android-sdk\opencv_java4_3，import時改選這個目錄。
1.Import OpenCV java目錄

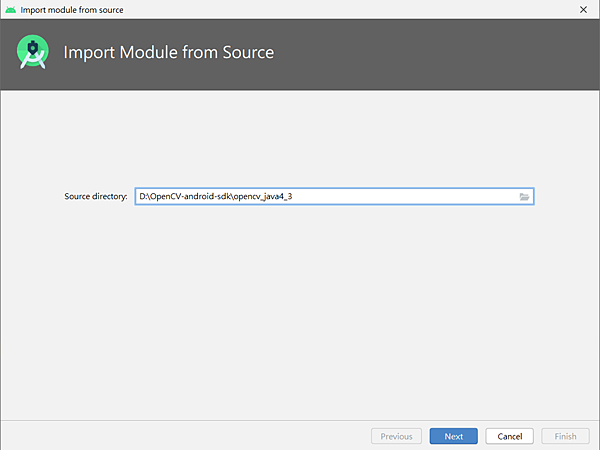

點選File->New->Import Module，目錄選擇\OpenCV-android-sdk\sdk\java，或是新建的D:\OpenCV-android-sdk\opencv_java4_3:
按[Next]。

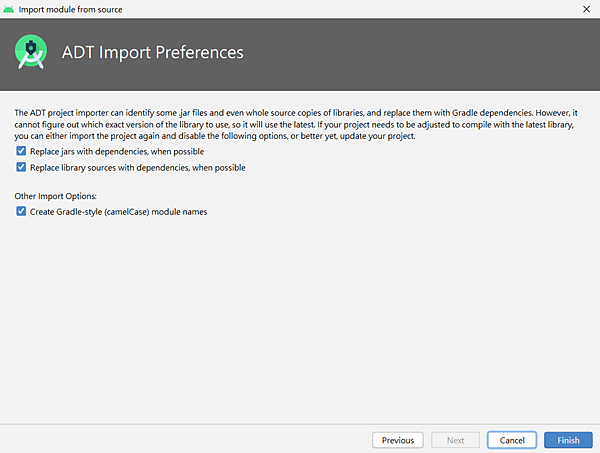

按[Finish]。
2.修改OpenCV java的build.gradle
(1).把OpenCV從application改成 library才能import。
修改apply plugin: 'com.android.application' ，把'application'改成'library'
(2).刪除applicationId，(否則有Library projects cannot set applicationId. applicationId is set to 'org.opencv' in default config.錯誤)，刪除以下敘述:
defaultConfig {
applicationId "org.opencv
}
修改後build.gradle(opencv_java4_3)如下:
apply plugin: 'com.android.library'
android {
compileSdkVersion 29
buildToolsVersion "29.0.2"
buildTypes {
release {
minifyEnabled false
proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.txt'
}
}
}
|
步驟3:dependencies加入OpenCV

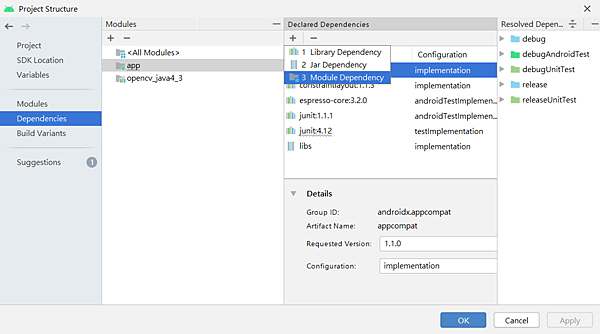

點選File-> Project Structure ，進入Project Structure畫面，點選左邊Dependencies選項，Modules選app(新增的project module名稱)，點[+](Add Dependency)，出現增加的選項，選[3 Module Dependency]，如下圖:

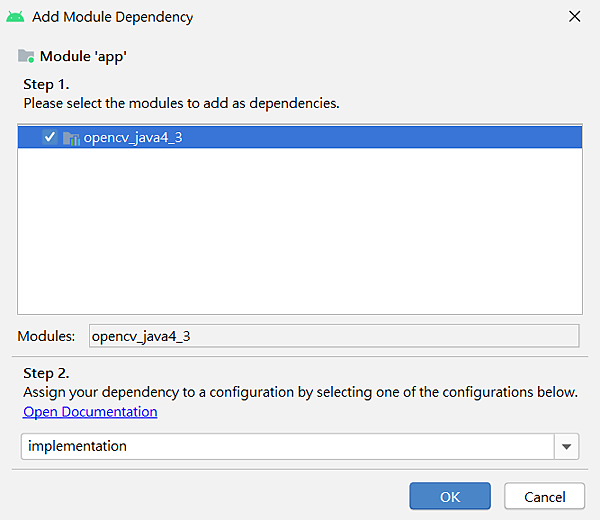

出現已經載入的opencv_java4_3，點選打勾。
按[OK]。

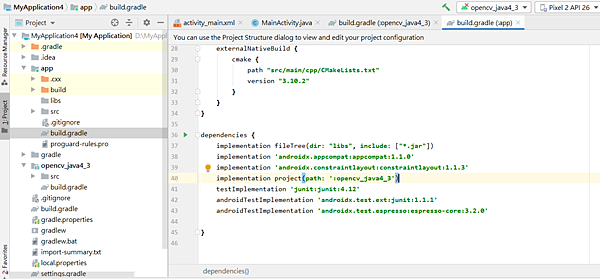

開啟build.gradle(app)，dependencies{ }內自動加入
implementation project(path: ':opencv_java4_3')，如下圖:
步驟4:增加Native Libraries
1.複製.so檔，將\OpenCV-android-sdk\sdk\native\libs下所有檔案複製到\app\libs下。

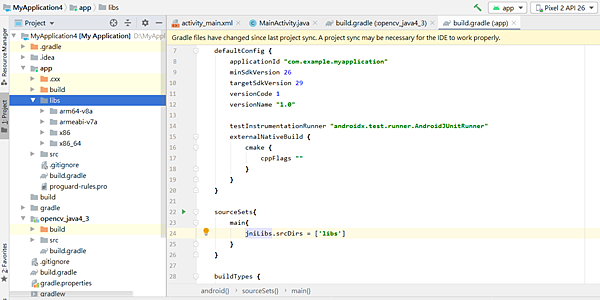

2.指定jniLibs路徑，開啟app的build.gradle，增加:
sourceSets{
main {
jniLibs.srcDirs = ['libs']
}
}
(後續有完整程式碼)
步驟5:複製OpenCV初始化程式
修改MainActivity.java，複製onResume程式碼，呼叫OpenCVLoader.initDebug()，判斷本機是否包含OpenCV；複製BaseLoaderCallback程式。
(後續有完整程式碼MainActivity.java)
步驟6:執行OpenCV初始化
如果APP順利顯示Hello from c++，表示載入OpenCV成功。
如果畫面出現:
Package not found
OpenCV Manager package was not found! Try to install it
log顯示出現:
D/Sample-test::Activity: Internal OpenCV library not found. Using OpenCV Manager for initialization
表示靜態初始化沒成功，在Run log會顯示
E/OpenCV/StaticHelper: OpenCV error: Cannot load info library for OpenCV
W/System.err: java.lang.UnsatisfiedLinkError: dlopen failed: library "libc++_shared.so" not found
解決方式:在build.gradle(app)的cmake增加
arguments "-DANDROID_STL=c++_shared"
修改後完整build.gradle(app)內容如下:
apply plugin: 'com.android.application'
android {
compileSdkVersion 29
buildToolsVersion "29.0.3"
defaultConfig {
applicationId "com.example.myapplication"
minSdkVersion 26
targetSdkVersion 29
versionCode 1
versionName "1.0"
testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
externalNativeBuild {
cmake {
cppFlags ""
arguments "-DANDROID_STL=c++_shared"
}
}
}
sourceSets{
main{
jniLibs.srcDirs = ['libs']
}
}
buildTypes {
release {
minifyEnabled false
proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
}
}
externalNativeBuild {
cmake {
path "src/main/cpp/CMakeLists.txt"
version "3.10.2"
}
}
}
dependencies {
implementation fileTree(dir: "libs", include: ["*.jar"])
implementation 'androidx.appcompat:appcompat:1.1.0'
implementation 'androidx.constraintlayout:constraintlayout:1.1.3'
implementation project(path: ':opencv_java4_3')
testImplementation 'junit:junit:4.12'
androidTestImplementation 'androidx.test.ext:junit:1.1.1'
androidTestImplementation 'androidx.test.espresso:espresso-core:3.2.0'
}
|
執行後log顯示
D/Sample-test::Activity: OpenCV library found inside package. Using it!
表示載入成功，開始OpenCV的程式了。
(也有其他作法把libc++_shared.so複製到需要的libopencv_java4.so目錄下，但試過沒成功，可能還要其他設定。)
完整MainActivity.java (Hello from c++):
package com.example.myapplication;
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.util.Log;
import android.widget.TextView;
import org.opencv.android.BaseLoaderCallback;
import org.opencv.android.LoaderCallbackInterface;
import org.opencv.android.OpenCVLoader;
public class MainActivity extends AppCompatActivity {
private static final String TAG = "Sample-test::Activity";
// Used to load the 'native-lib' library on application startup.
static {
System.loadLibrary("native-lib");
}
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
// Example of a call to a native method
TextView tv = findViewById(R.id.sample_text);
tv.setText(stringFromJNI());
}
/**
* A native method that is implemented by the 'native-lib' native library,
* which is packaged with this application.
*/
public native String stringFromJNI();
private BaseLoaderCallback mLoaderCallback = new BaseLoaderCallback(this) {
@Override
public void onManagerConnected(int status) {
switch (status) {
case LoaderCallbackInterface.SUCCESS:
{
Log.i(TAG, "OpenCV loaded successfully");
} break;
default:
{
super.onManagerConnected(status);
} break;
}
}
};
@Override
public void onResume()
{
super.onResume();
if (!OpenCVLoader.initDebug()) {
Log.d(TAG, "Internal OpenCV library not found. Using OpenCV Manager for initialization");
OpenCVLoader.initAsync(OpenCVLoader.OPENCV_VERSION_3_0_0, this, mLoaderCallback);
} else {
Log.d(TAG, "OpenCV library found inside package. Using it!");
mLoaderCallback.onManagerConnected(LoaderCallbackInterface.SUCCESS);
}
}
}
|
